Curtiss XF15C-1

20.4k LieutenantSOT  3.1 years ago

FIXED

First flown in May of 1945, the Curtiss XF15C model was built once, and the plane crashed because of the low wing, killing the pilot in the crash. Later, two more planes were ordered in the XF15C-1 "Stingray" variant, which had the high "T" tail. This model proved successful, but never entered mass production. This plane was originally intended for Naval superiority, but by the time the plane could have been put into mass production, other jet-based fighters were built.

This plane was better than the identical Ryan FR Fireball, but it never left the Experimental phase of construction. Equipped with a radial 2,100 hp engine, and a 2,000 lpf jet engine on the rear.
This plane had the capability of 469 mph at 28,000 feet (almost 60 mph faster than the Fireball), and it was equipped with 4 20mm autocannons. It also had the capability to hold two hardpoints for external fuel tanks or two 1000 pound bombs.
Only three were ever produced, with one being destroyed in the crash, one being salvaged, and one is on display in North Carolina at a museum.


This is probably my best build yet! Sorry it has no cockpit, but I am pretty proud of this. The only issue I see it having in the challenge is it having too fast of deceleration on the arresting hook. I forgot to change that before posting, but yeah. I really like it, and it is the second one on this site!

Mine is a tad bigger and heavier than the real one, but it also is very realistic (I will put the cool pictures and blueprints I used at the bottom of the description). The only performance issue is that because it is slow (260 mph at sea level) it has weird maneuverability, but once you get the hang of it, it flies fine. Also, the rear suspension is 10,000% strength so as to make carrier landings easy.

Another inaccuracy I just caught: I think the propeller is about a foot too small in diameter. Either way, still looks cool in my opinion. All feedback is appreciated!


Controls:

  • AG1 = Fold Wings
  • AG2 = Arresting Hook
  • VTOL = Steering on front gear (up is right and down is left)
  • Trim = Trim (I suggest putting this down halfway when in level flight so the plane doesn't pitch down. The jet is at an angle and applies force accordingly)

Weapons:

  • 4 20mm autocannons (I put a yellow tracer on the cannon shells. Pretty neat, in my opinion)

Side Notes:

  • I'm sorry, but I'm really proud of this. it may not be the best, but for me, it is better than most anything I have ever made quality-wise for a replica. I truly hope y'all enjoy.
  • The landing gear are all at different speeds, so it looks really cool to watch them close/open.

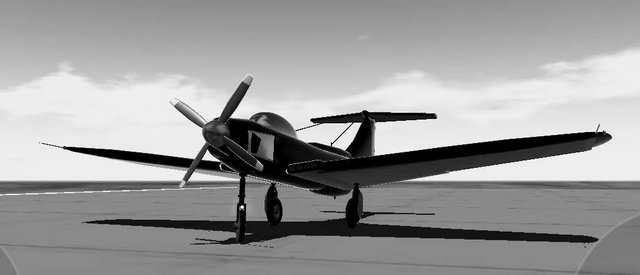

Cool Pics:




Blueprint/Real Pics:




I really do hope y'all enjoy!

Spotlights

General Characteristics

Performance

  • Power/Weight Ratio 1.179
  • Horse Power/Weight Ratio 0.122
  • Wing Loading 32.3lbs/ft2 (157.5kg/m2)
  • Wing Area 531.5ft2 (49.4m2)
  • Drag Points 6517

Parts

  • Number of Parts 200
  • Control Surfaces 4
  • Performance Cost 795
