Eurofighter Typhoon

116k Inuyasha8215  3.5 years ago

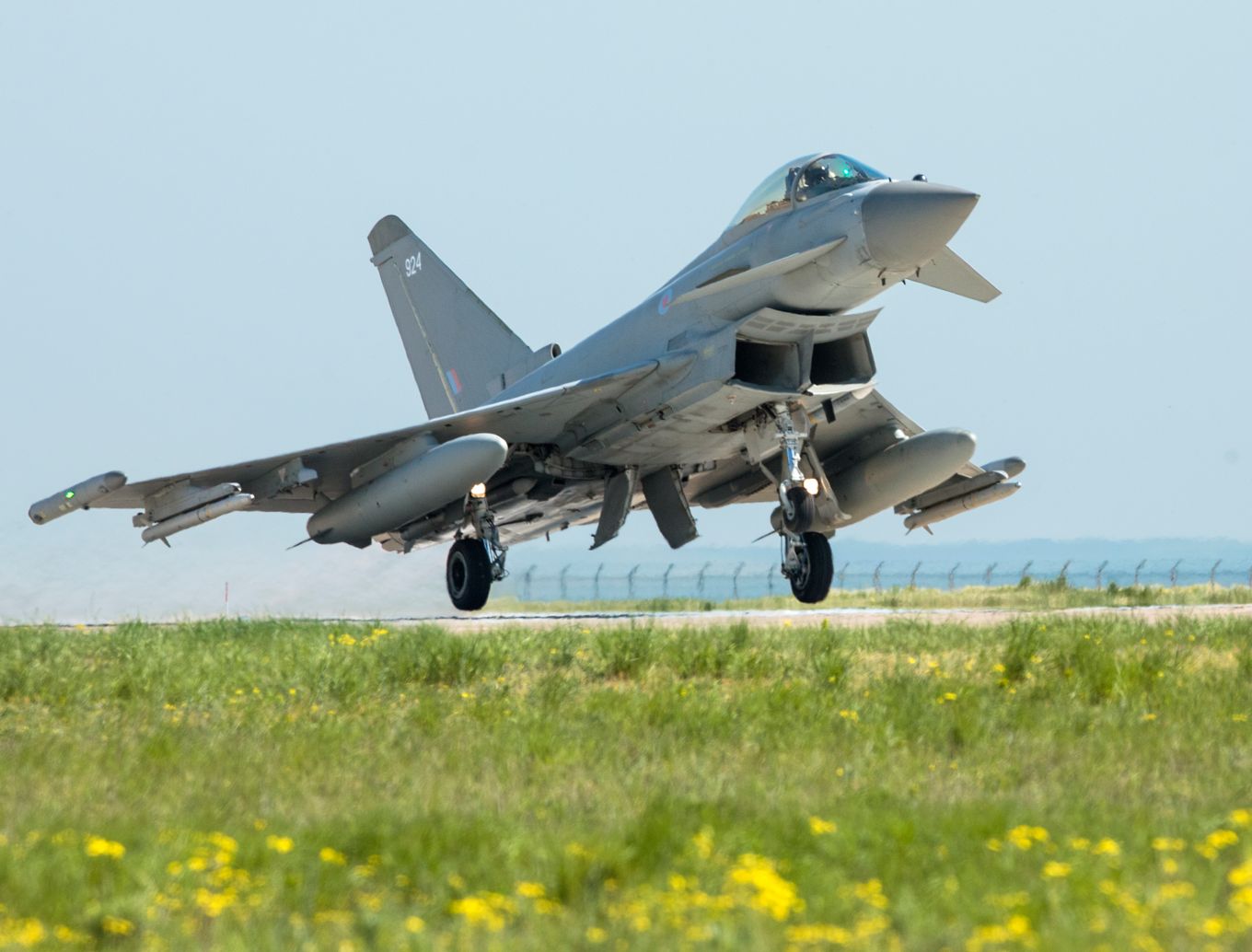

The Eurofighter Typhoon is a twin-engine, canard delta wing, multirole fighter. The Typhoon was designed originally as an air superiority fighter and is manufactured by a consortium of Airbus, BAE Systems and Leonardo that conducts the majority of the project through a joint holding company, Eurofighter Jagdflugzeug GmbH. NATO Eurofighter and Tornado Management Agency manages the project and is the prime customer.

The Typhoon is a highly agile aircraft both at supersonic and at low speeds, achieved through having an intentionally relaxed stability design. It has a quadruplex digital fly-by-wire control system providing artificial stability, as manual operation alone could not compensate for the inherent instability. The fly-by-wire system is described as "carefree", and prevents the pilot from exceeding the permitted maneuver envelope. Roll control is primarily achieved by use of the ailerons. Pitch control is by operation of the canards and ailerons, because the canards disturb airflow to inner elevons (flaps). The yaw control is done by big single rudder. Engines are fed by a chin double intake ramp situated below a splitter plate. The Typhoon features lightweight construction (82% composites consisting of 70% carbon fiber composite materials and 12% glass fiber reinforced composites) with an estimated lifespan of 6,000 flying hours.

Controls:
AG1: Open parachute
AG2: Jettison external fuel tank
AG3: Jettison bombs
AG4: Jettison Inferno missiles
Trim: Trim

Spotlights

General Characteristics

  • Created On Windows
  • Wingspan 19.6ft (6.0m)
  • Length 27.3ft (8.3m)
  • Height 10.0ft (3.1m)
  • Empty Weight N/A
  • Loaded Weight 11,520lbs (5,225kg)

Performance

  • Power/Weight Ratio 5.852
  • Wing Loading 36.9lbs/ft2 (180.2kg/m2)
  • Wing Area 312.2ft2 (29.0m2)
  • Drag Points 2521

Parts

  • Number of Parts 131
  • Control Surfaces 7
  • Performance Cost 723
