AGM-183A THE ARRW

3,613 AscendedBreezeAerospace  25 days ago

THE AGM-183A

I showcased this from Player5e's B52
SimplePlanesThumbnail

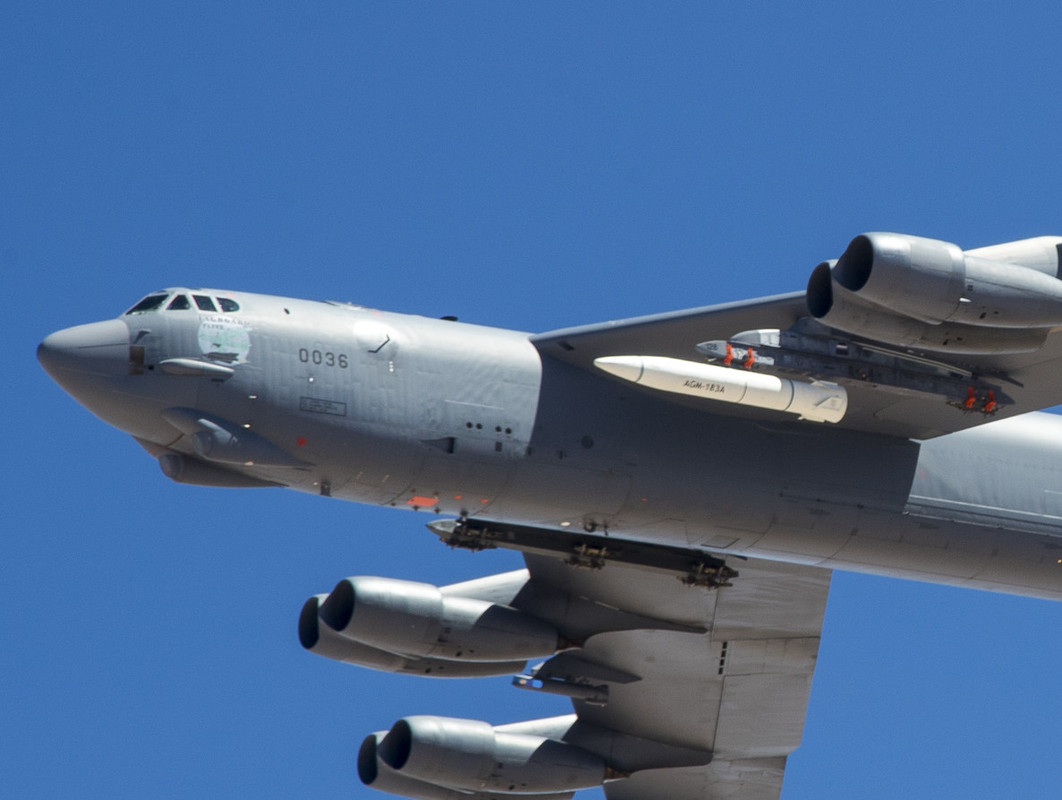

RealLifeARRW
Wiki:
The AGM-183 ARRW ("Air-Launched Rapid Response Weapon") is a hypersonic air-to-ground ballistic missile planned for use by the United States Air Force. Developed by Lockheed Martin, the boost-glide vehicle is propelled to a maximum speed of more than Mach 5 by a rocket motor before gliding toward its target. The program was cancelled in March 2023 after multiple failed tests. The program, however, continued despite the cancellation and was announced to still be in development following additional, undisclosed testing.

Update of the ARRW:
However the statement that wikipedia shown was actually old news, because recently, the U.S military had actually conducted multiple successful test of it since last year and other months. Despite the past failures, the U.S has finally catched up with china and russia in hypersonic missile development.

All of the ARRW'S past failures wasn't actually from the glide vehicle but rather from it's rocket booster malfunction and it's pylon failing to release or launch the missile.

Characteristics:

Name: AGM-183A ARRW
Top Speed: Mach 20
Max range: 1,000 mi (1,600 km)
Place of Origin: United States
Used by: U.S.A.F(United States Air force)
Manufacturer: Lockheed Martin
Unit Cost: $15-$18 million

Launch, Hypersonic Acceleration, and Impact:

ARRW

ARRW

ARRW

ARRW

TBG

TBG

TBG

Impact

Impact

Impact

Sub-Assembly and Mirroring Instruction:

Saving Instruction:

If you want to save it as Sub-Assembly, move out, disconnect, or drag out the Cockpit part out of the missile build, then you can now drag any part of the missile to save the whole part of the missile(This includes the missile and it's large pylon support structure), as long as the Cockpit part is dragged out and disconnected out of the build.

Part Mirroring Instruction:

1.)If you mirrored an another copy of the ARRW, make sure that weapon name of that copy is changed from AGM183A>(1)< to AGM183A>(2)<. To do this, you must zoom-in inside the hypersonic glide vehicle which is hidden inside the nose cap of the ARRW to find the hidden scaled down inferno missile in order to rename it.

However It's not only just that yet. You must need to rewrite the Funky/XML code Input of the engine, 3 black detachers, and Gyroscope of the copy or mirrored ARRW.

2.)(Note:Only for the 3 black detachers, except/not the one black pylon connected to the large pylon support structure on top of the ARRW)
Inside and close to the ARRW'S nose cap is the 3 black detachers, and for all the 3 detacher's Activation Group Input, it must be changed from ammo("AGM183A>(1)<") = 0 to ammo("AGM183A>(2)<") = 0

3.)Inside and Behind the ARRW is the engine of the ARRW'S rocket booster, It's input(Not Activation Group)must changed from ammo("AGM183A>(1)<")=0 to ammo("AGM183A>(2)<")=0

4.)Inside and bit near behind of ARRW is the Gyroscope, It's Activation Group Input must be changed from ammo("AGM183A>(1)<") = 0 to ammo("AGM183A>(2)<") = 0

Spotlights

General Characteristics

  • Created On Android
  • Wingspan 3.9ft (1.2m)
  • Length 28.5ft (8.7m)
  • Height 8.7ft (2.7m)
  • Empty Weight N/A
  • Loaded Weight 939lbs (426kg)

Performance

  • Power/Weight Ratio 0.538
  • Wing Loading 698.4lbs/ft2 (3,410.1kg/m2)
  • Wing Area 1.3ft2 (0.1m2)
  • Drag Points 814

Parts

  • Number of Parts 106
  • Control Surfaces 0
  • Performance Cost 264
  • Log in to leave a comment
  • Profile image

    @TheAviator77 Alright, I'm so Sorry. Actually I mostly didn't really care much about super realism, the most important thing that I care about is the functionality very similar to the real one.

    If the booster didn't accurately function as the real one, At least it's able to release a functional hypersonic glide vehicle that can able to Accelerate, maneuver, and track targets like the real one.

    22 days ago
  • Profile image
    5,395 TheAviator77

    @AscendedBreezeAerospace The booster doesn't seem to fire for very long, and it doesn't speed up to Mach 5.

    22 days ago
