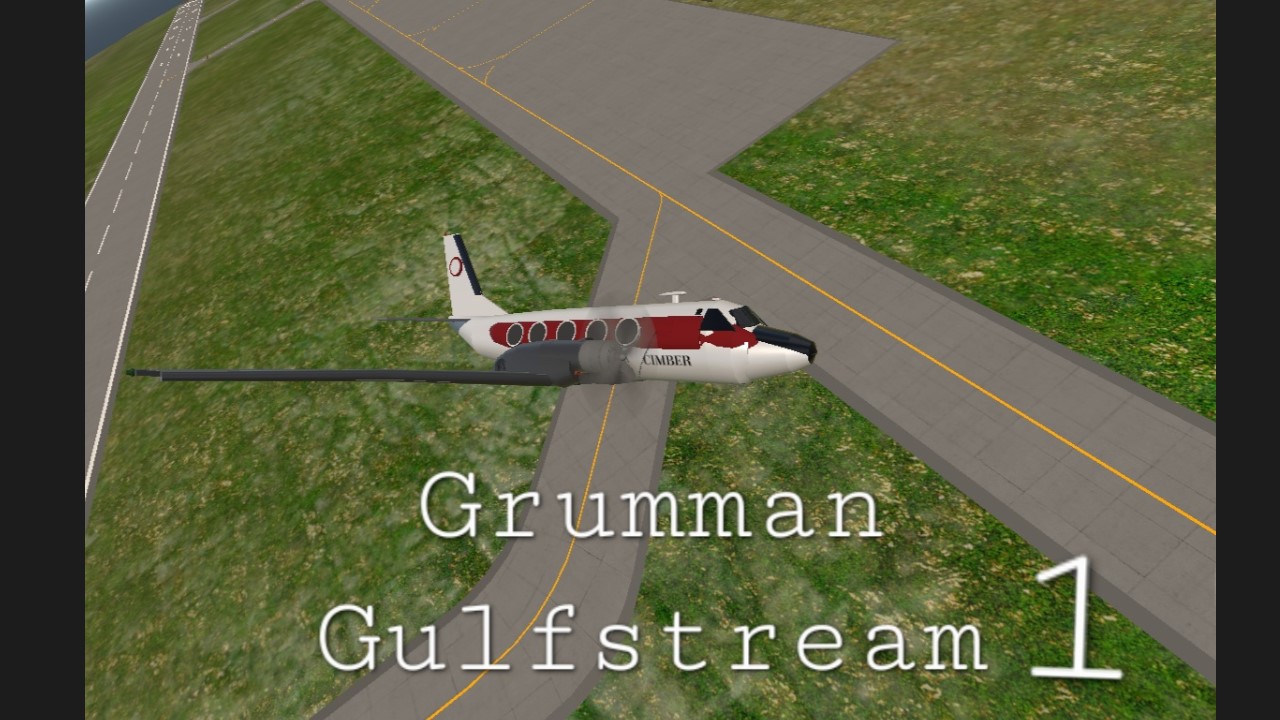

Grumman Gulfstream I

1,946 StraitAircraft  2 hours ago
Auto Credit Based on B1's (OPEN) The 1960s Challenge by B1

Gulfstream!
Some history
The gulfstream 1 was an attempt by grumman to make a private plane, yeah thats about it. Its quite a small but fashionable aircraft, and over 209 were made, flown by people such as walt Disney!
The gulfstream name and branding is quite well-known, but this is the only one on this website as far as I know.


General characteristics

Crew: 2
Capacity: 10–24 passengers / 4,270 lb (1,937 kg) maximum payload
Length: 63 ft 9 in (19.43 m)
Wingspan: 78 ft 6 in (23.93 m)
Height: 22 ft 9 in (6.93 m)
Wing area: 610.3 sq ft (56.70 m2)
Aspect ratio: 10
Airfoil: root: NACA 63A-214; tip: NACA 63A-314
Empty weight: 21,900 lb (9,934 kg) equipped
Maximum zero-fuel weight: 26,170 lb (11,871 kg)
Max takeoff weight: 35,100 lb (15,921 kg)
Maximum landing weight: 33,600 lb (15,241 kg)
Fuel capacity: 1,550 US gal (1,290.6 imp gal; 5,867.4 L) in integral wing tanks
Powerplant: 2 × Rolls-Royce Dart Mk.529 or Mk.529-8E turboprop, 2,190 shp (1,630 kW) each equivalent
Propellers: 4-bladed Rotol constant-speed fully-feathering propellers


This one is surprisingly close to the original, it has slightly lesser fuel, and its max speed is somewhere around 400kmph, enjoy!

This was a submission to the 1960s challenge, since its production run was well into the 60z, despite being first made in 1959
close enough

General Characteristics

  • Predecessor (OPEN) The 1960s Challenge by B1
  • Created On Android
  • Wingspan 88.0ft (26.8m)
  • Length 60.8ft (18.5m)
  • Height 28.7ft (8.7m)
  • Empty Weight 23,181lbs (10,514kg)
  • Loaded Weight 29,926lbs (13,574kg)

Performance

  • Power/Weight Ratio 0.225
  • Horse Power/Weight Ratio 0.133
  • Wing Loading 31.1lbs/ft2 (151.8kg/m2)
  • Wing Area 962.7ft2 (89.4m2)
  • Drag Points 16125

Parts

  • Number of Parts 133
  • Control Surfaces 5
  • Performance Cost 624
