Gulfstream G700

160k MAPA  5 months ago
Auto Credit Based on MAPA's Magic Form

Skip to Comments


About the Aircraft: by Wikipedia

On the eve of the October 2019 NBAA Convention and Exposition in Las Vegas, Gulfstream announced its new flagship, the G700, showing a video of the aircraft taxiing under its own power in Savannah. It must fly 7,500 nmi/13,890 km at Mach 0.85 or 6,400 nmi/11,853 km at Mach 0.90. Its longest cabin can accommodate up to five areas and has 20 windows. It is powered by Rolls-Royce Pearl 700 engines and has new winglets. Customer deliveries were originally planned to begin in 2022.

As of July 2023, FAA approval was expected to be received in the fall. The $75 million jet is a 3.0 m (10 ft) section of the G650. The aircraft completed its first flight on February 14, 2020. The G700 is expected to share its fly-by-wire cabin with the G500/G600: active control sidesticks and Honeywell Primus Epic flight deck with synthetic vision systems and enhanced to a common type classification.

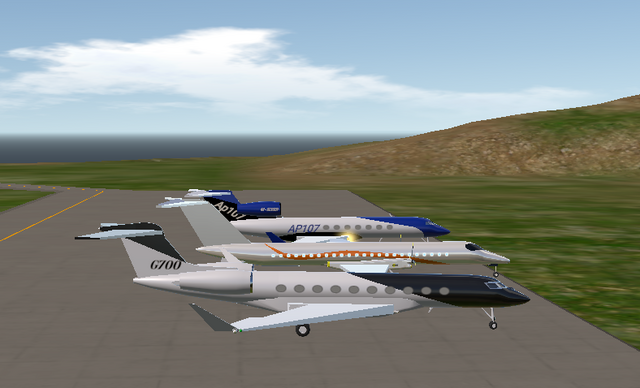

Image: G700 next to the WINGSIRON WSN 120M made by @WINGSIRONDYNAMIC and AP-107 made by @AquaAircraftManufacturing

The jet is 110 feet (33.5 m) long, about 9.8 feet (3 m) longer than the G650ER and about 0.98 feet (0.3 m) shorter than the competing Bombardier Global 7500.
Its main cabin is 17.4 m (57 ft) long, 1.9 m (6.2 ft) high and 2.5 m (8.2 ft) wide; 2.6 feet (0.8 m) longer, 0.33 feet (0.1 m) wider and a fraction taller than the 7500's cabin. It should carry 19 seated passengers or accommodate 10. It will have an MTOW 107,600 lb (48,800 kg) and 18,250 lbf (81.2 kN) turbofans are expected to burn 2–3% less fuel than the G650's RR BR725s. The aircraft is expected to require a 6,250 ft (1,905 m) runway at MTOW in ISA sea level conditions and land at 2,500 ft (762 m) at a typical landing weight.

It has the same 1,283-square-foot (119.2 m) wing with a 33° wingspan, but the outermost swept winglets are 3.4 feet (1.0 m) wider. Basic operating weight increases from 54,500 to 56,000 lb (24,700 to 25,400 kg) and wet wing fuel capacity increases slightly by 1,200 lb (540 kg). The Pearl 700 turbofan is an improved version of the BR725, with an additional low pressure turbine stage, an overall pressure ratio greater than 50:1 and a bypass ratio greater than 6.5:1 for a specific fuel consumption of 3-5% better thrust. . After flight testing, the G700 surpassed its competitor's 7,700 nmi (14,300 km) range and reached 7,800–8,000 nm (14,400–14,800 km). The G700's maximum operating speed increased from Mach 0.925 to Mach 0.935, ranking it as the fastest speed in the Gulfstream product line. As of 2023, its equipped price is US$79.9 million.

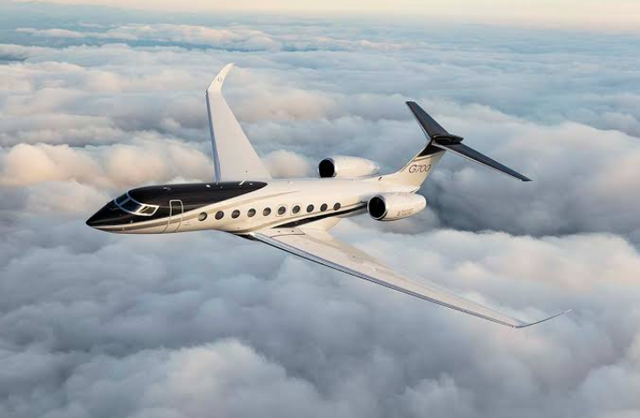

Actual Sample:

Image Credit: AEROIN

This aircraft follows all the basic AI requirements. It is specially designed for Artificial Intelligence [AI] to simulate air traffic, it is able to land and take off with extreme precision at the main airports in the game, it is also a playable aircraft, you can enjoy air collisions, target shooting or just enjoy of a more realistic air traffic.

How to make it operational:

Step 1: Download and save this aircraft to your collection

Step 2: Activate in-game AI air traffic in sandbox mode and wait patiently on the ground until the aircraft is spawned

If the aircraft is not spawning, remove decorative details such as lights, letters and numbers on the fuselage, then repeat the process again until the aircraft is spawned in your skies.



Finally friends, it seems like the day has finally arrived


Controls: Standard

Thank you for your attention, Good flight!

Spotlights

General Characteristics

  • Predecessor Magic Form
  • Successors 3 airplane(s) +21 bonus
  • Created On Android
  • Wingspan 155.6ft (47.4m)
  • Length 160.7ft (49.0m)
  • Height 39.3ft (12.0m)
  • Empty Weight N/A
  • Loaded Weight 32,904lbs (14,925kg)

Performance

  • Power/Weight Ratio 4.097
  • Wing Loading 19.7lbs/ft2 (96.0kg/m2)
  • Wing Area 1,673.0ft2 (155.4m2)
  • Drag Points 6406

Parts

  • Number of Parts 93
  • Control Surfaces 7
  • Performance Cost 521
  • Log in to leave a comment
  • Profile image
    160k MAPA

    Welcome to the comments!
    Are you ready to shell out $79.9 million to buy this flying palace? XD
    Just kidding, have a good flight!


    Back to Top

    Pinned 5 months ago
  • Profile image
    160k MAPA

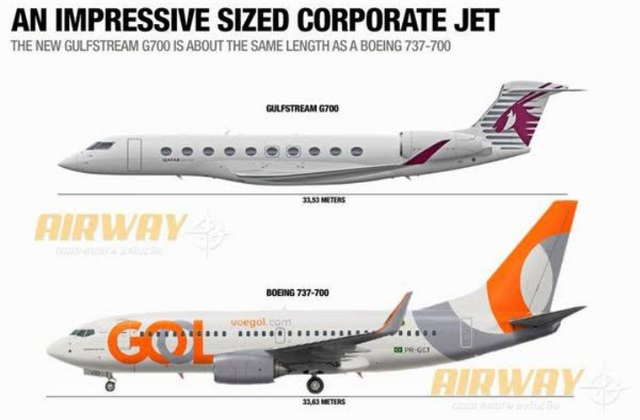

    @SayaRayhan I just took my old G650 and stretched it until it was the same length as the image shown above of GOL's 737.
