DAIMLER BENZ PROJECT C

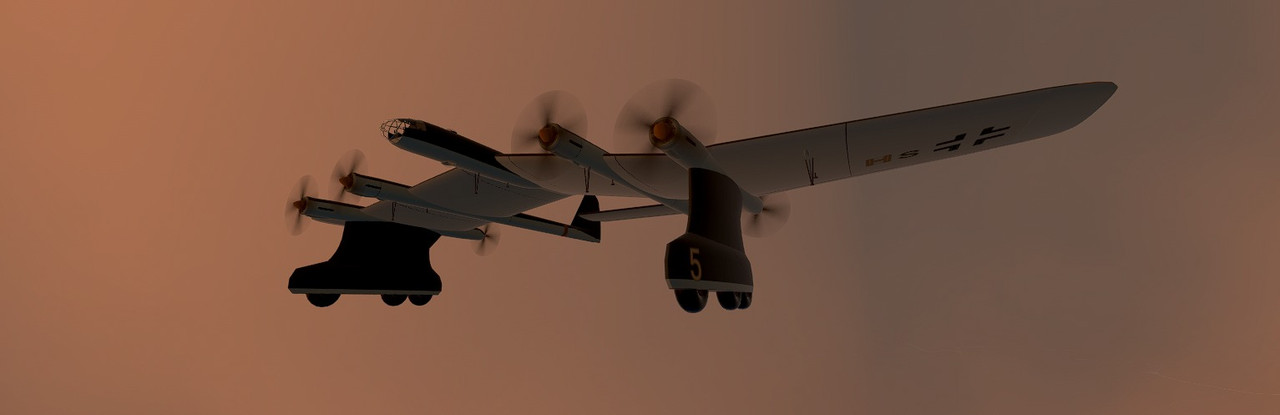

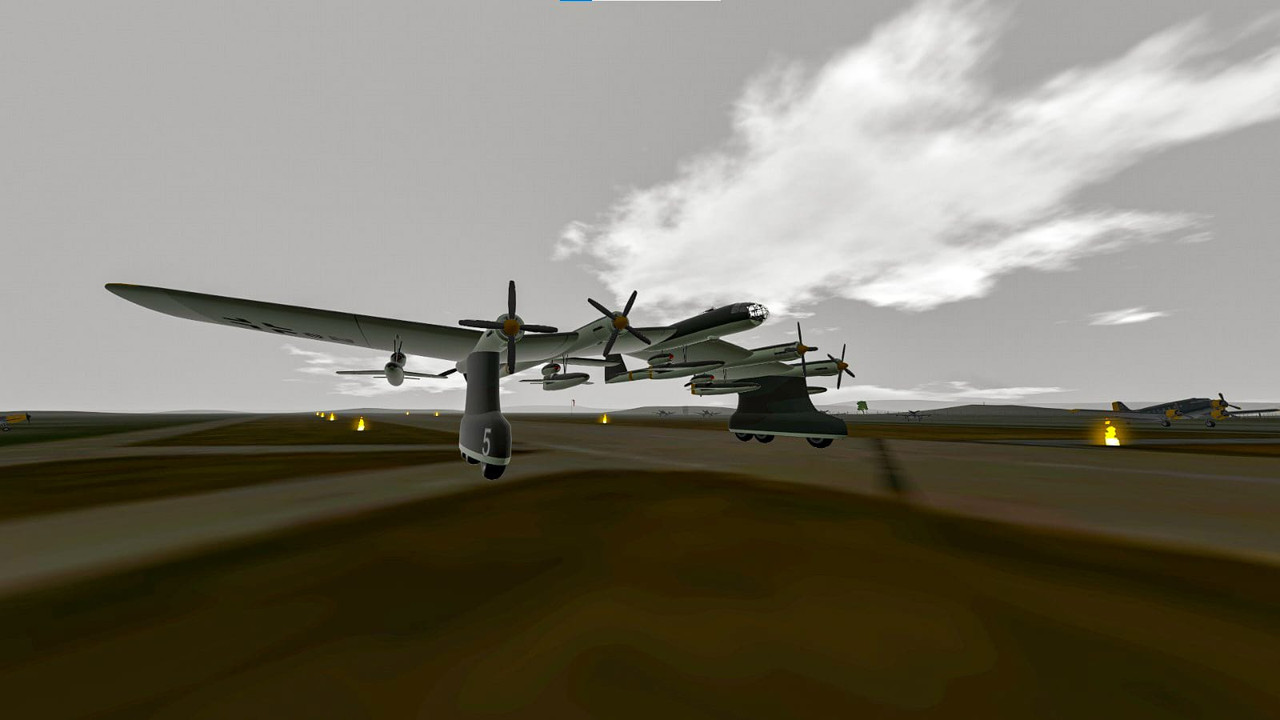

This design dates from early 1945, and was also to be a carrier aircraft (like the Daimler Benz Project "A"). The Daimler Benz Project "C" was basically the Daimler Benz Project "B" without the single jet engine bomber attached. The wing was straight with a taper on the outer wing leading edge, and featured pronounced anhedral on the inner wing sections and dihedral outboard of the high, fixed landing gear. Six DB 603 piston engines provided the power, four pulling and two pushing. There were two different parasite manned missiles that could be carried by this aircraft, the Daimler Benz Project "E" and the Daimler Benz Project "F".

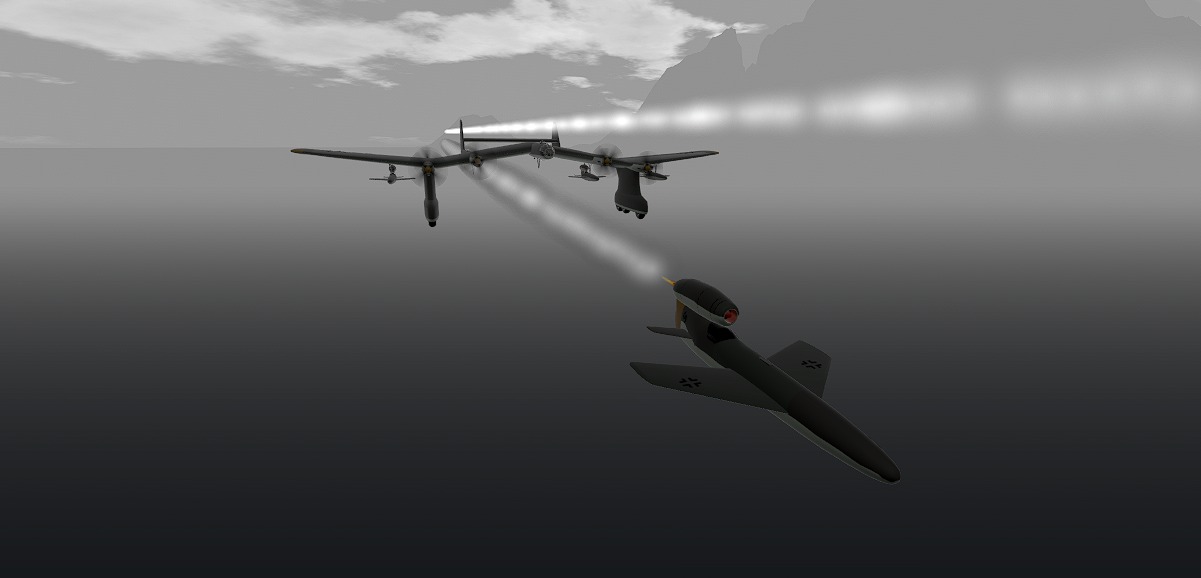

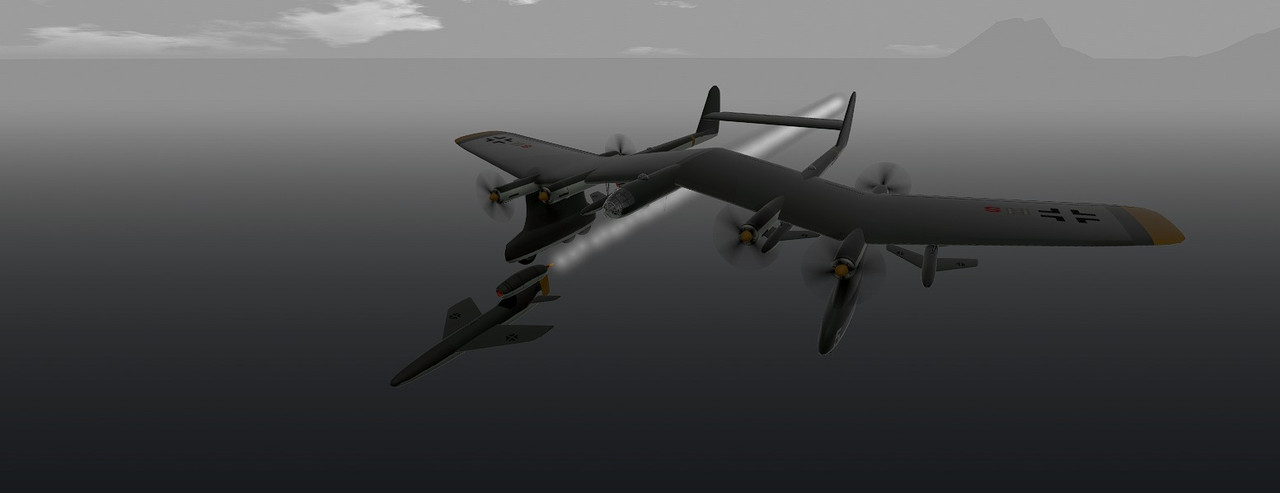

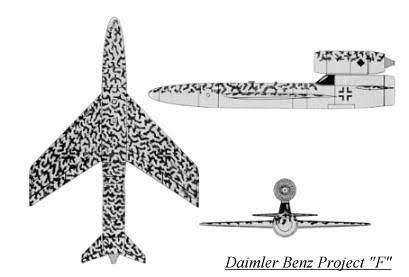

The Daimler Benz Project "F" was designed as a piloted missile to be launched from the Daimler Benz Project "C" carrier aircraft. Six of these manned missiles could be carried at one time (see diagram below). The wings and tailplanes were swept back sharply, and power was supplied by a single BMW 018 jet engine. 3000 kg (6600 lbs) of explosives were located in the nose of the aircraft, which were detonated on impact. Once carried aloft by the carrier aircraft, the DB Project "F" aircraft were then released near the target, with the pilot then choosing his target and then diving towards it. When the pilot was assured of a hit, he was to escape by a hatch located beneath the cockpit (see diagram below). Although this aircraft wasn't officially considered a suicide plane, the pilot probably had a very small chance of survival, due to the speed of the aircraft in the attack and the proximity to the target when escaping.

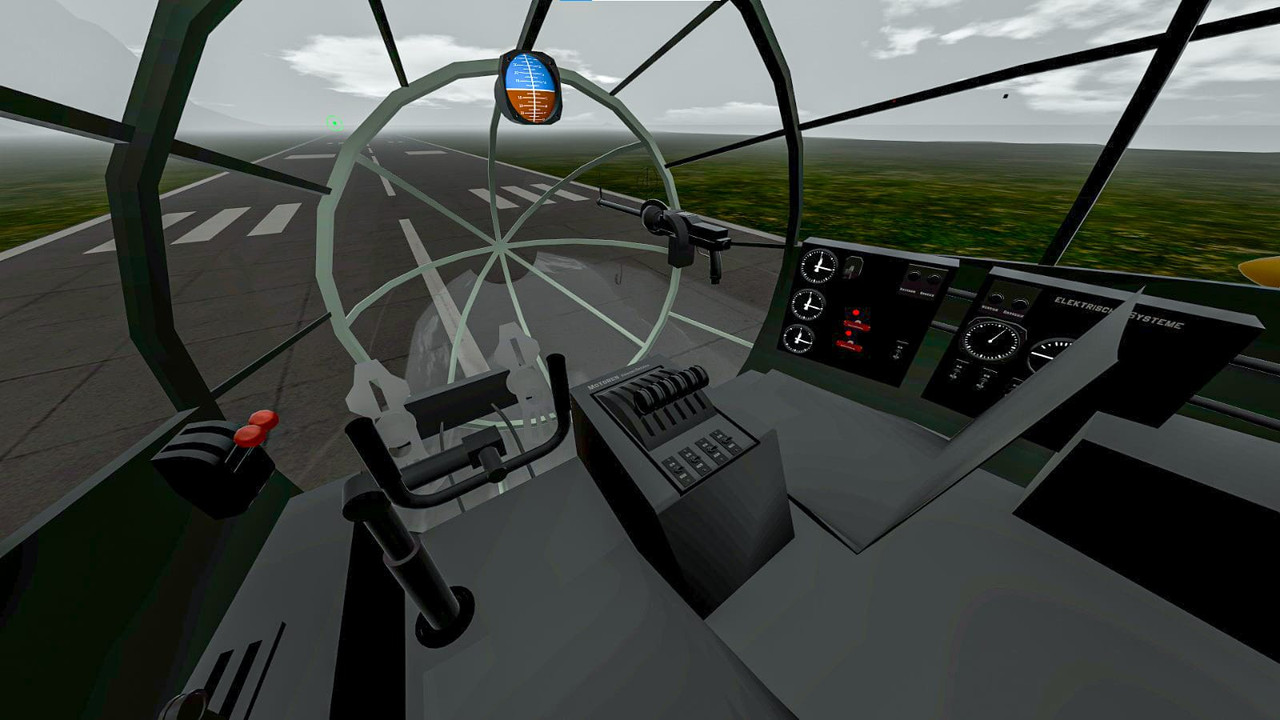

cockpit

development note:

*This plane is one of my favorite Luft 46 projects and I wanted to do it for a long time, and I finally did it. I have many other Luft 46 projects to do and I would be happy if you could follow and criticize them all, thank you very much for your upvolt and highlight and enjoy *
