437-MENG KONG(Alternative version scheme)

5,495 Observer404  11 days ago
24 downloads
No Tags
Auto Credit Based on Observer404's 437-KONG MENG

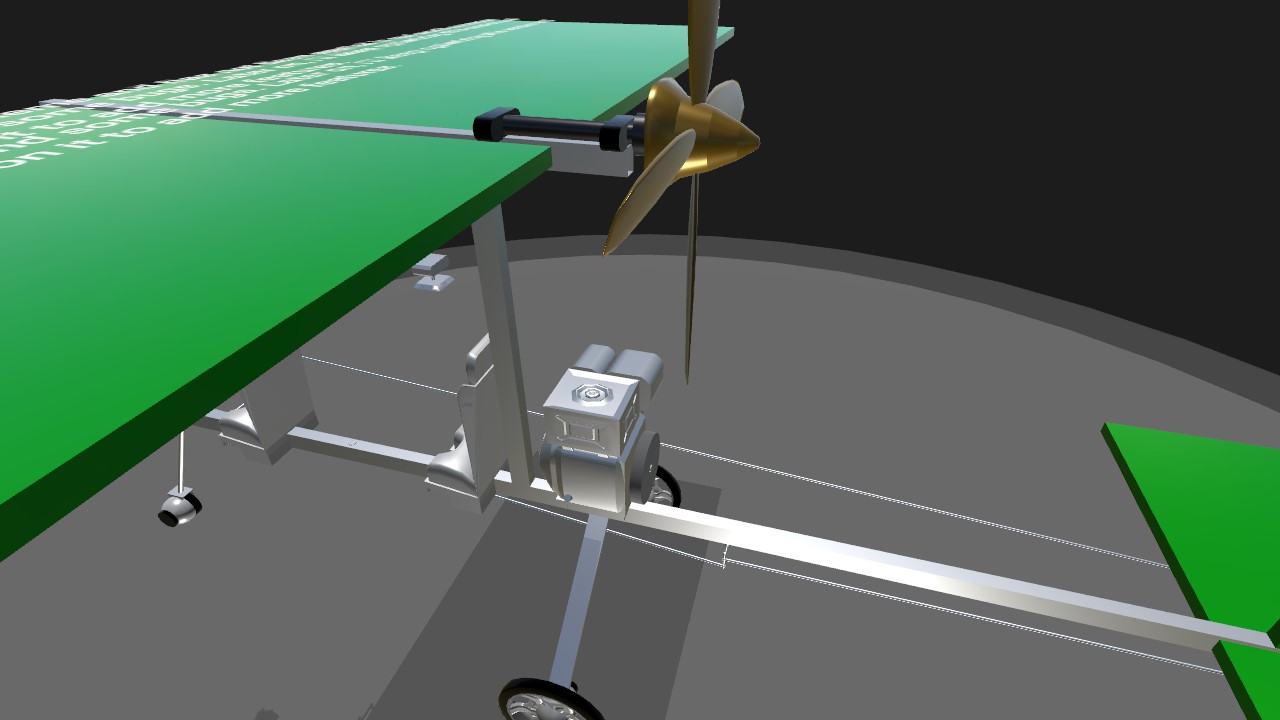

I... urgently need to learn from professionals specializing in ultralight aircraft. Is there anyone who can assist me? My primary objective is to achieve successful takeoff without modifying the steel-structured airframe. Beyond the aircraft data, I must add that nearly all materials are sourced domestically within my country. The airframe structure employs standard steel sections. It is powered by a compact general-purpose 190F engine (weighing 30+ kg, rated at ≈14 HP — I have optimistically amplified the output via a pulley transmission system, with an integrated 6L fuel tank). The wings consist of 2cm-diameter steel tubes (as spars), cedar plywood ribs (airfoil: FX74CL5140), and tri-color striped truck tarpaulin fabric (as skin covering). My body weight is 45kg. This summarizes all available information, and my current goal is to achieve effective real-world takeoff as soon as possible.

General Characteristics

  • Predecessor 437-KONG MENG
  • Created On Windows
  • Wingspan 21.3ft (6.5m)
  • Length 16.9ft (5.2m)
  • Height 9.1ft (2.8m)
  • Empty Weight 206lbs (93kg)
  • Loaded Weight 218lbs (99kg)

Performance

  • Horse Power/Weight Ratio 0.091
  • Wing Loading 1.5lbs/ft2 (7.4kg/m2)
  • Wing Area 144.6ft2 (13.4m2)
  • Drag Points 866

Parts

  • Number of Parts 120
  • Control Surfaces 2
  • Performance Cost 743
