Bars " Ukrainian Rocket

60 NazarUkrain5  2 days ago
10 downloads
No Tags

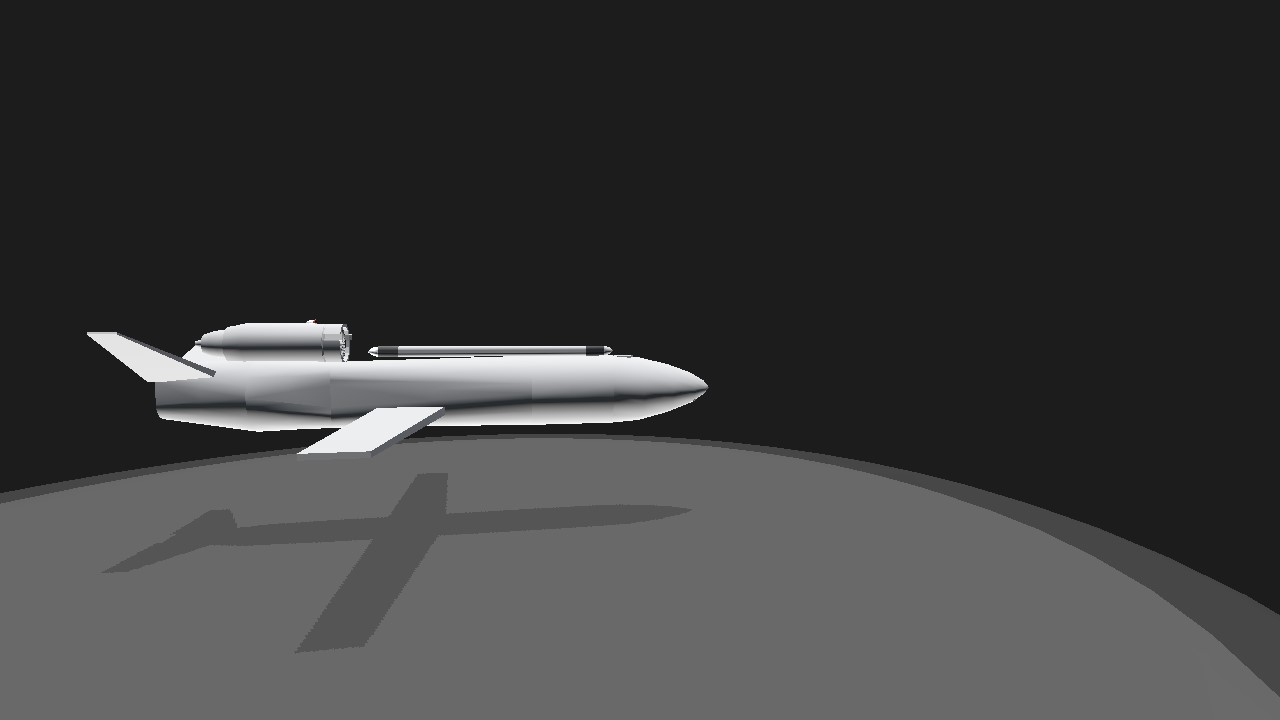

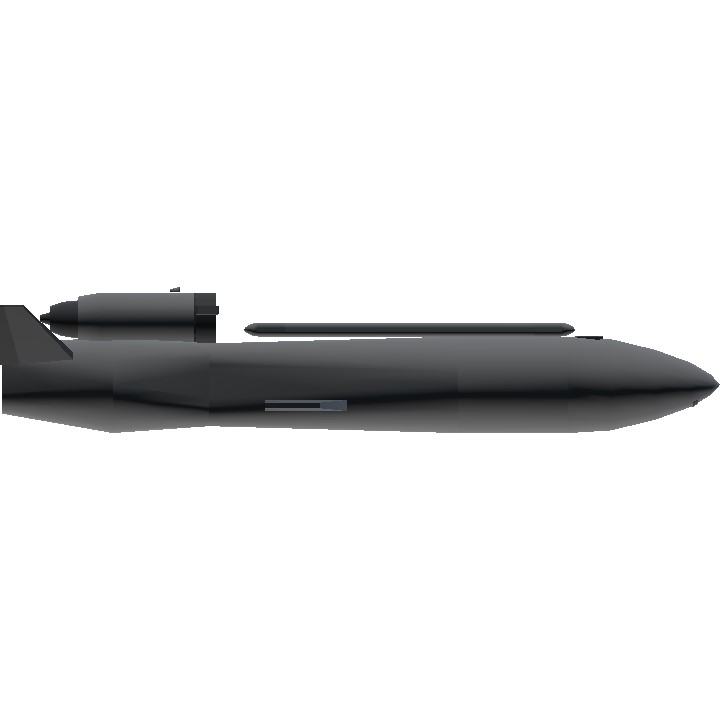

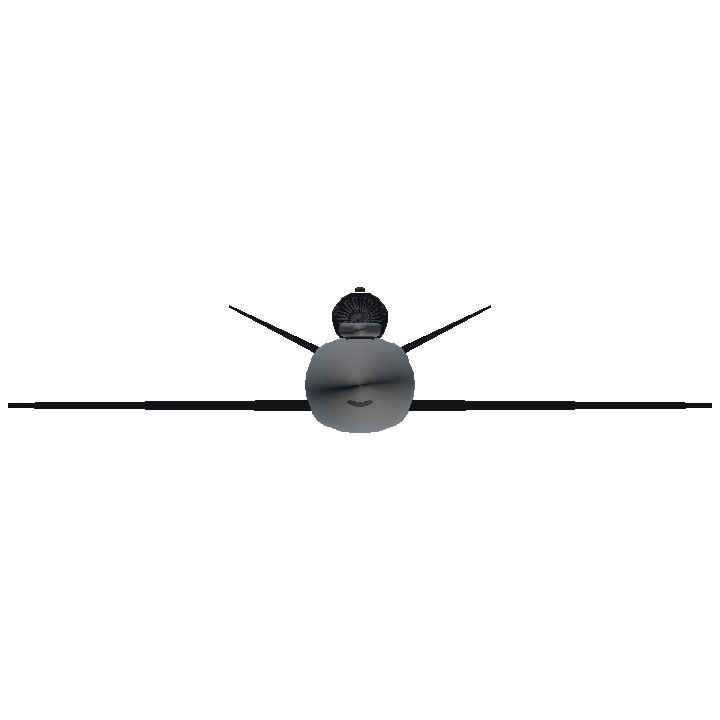

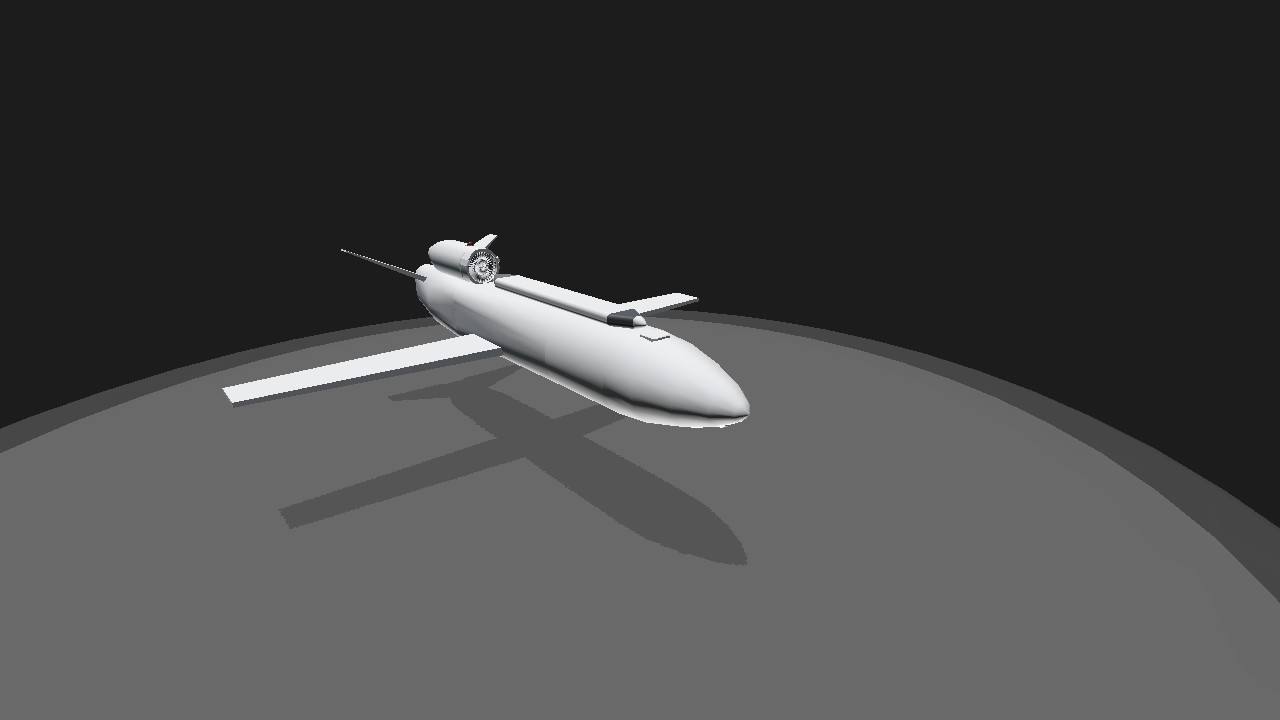

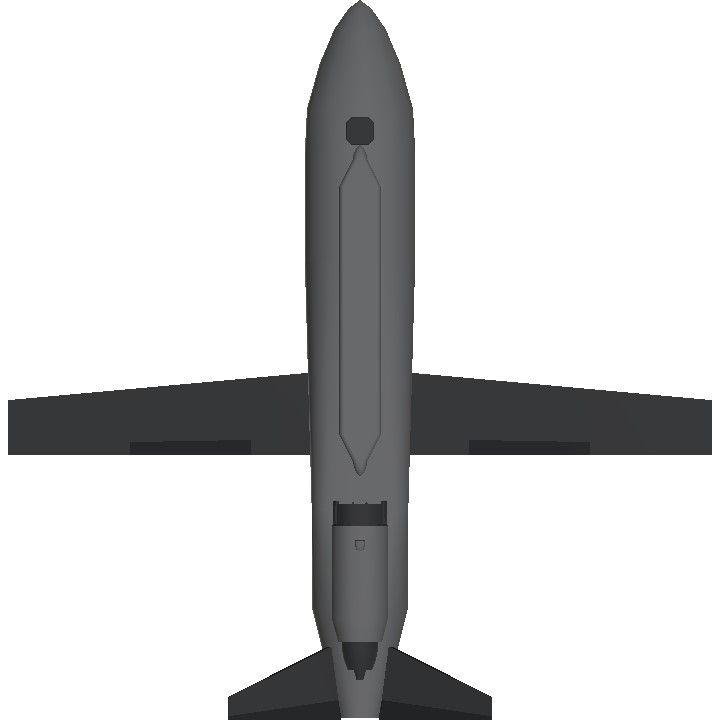

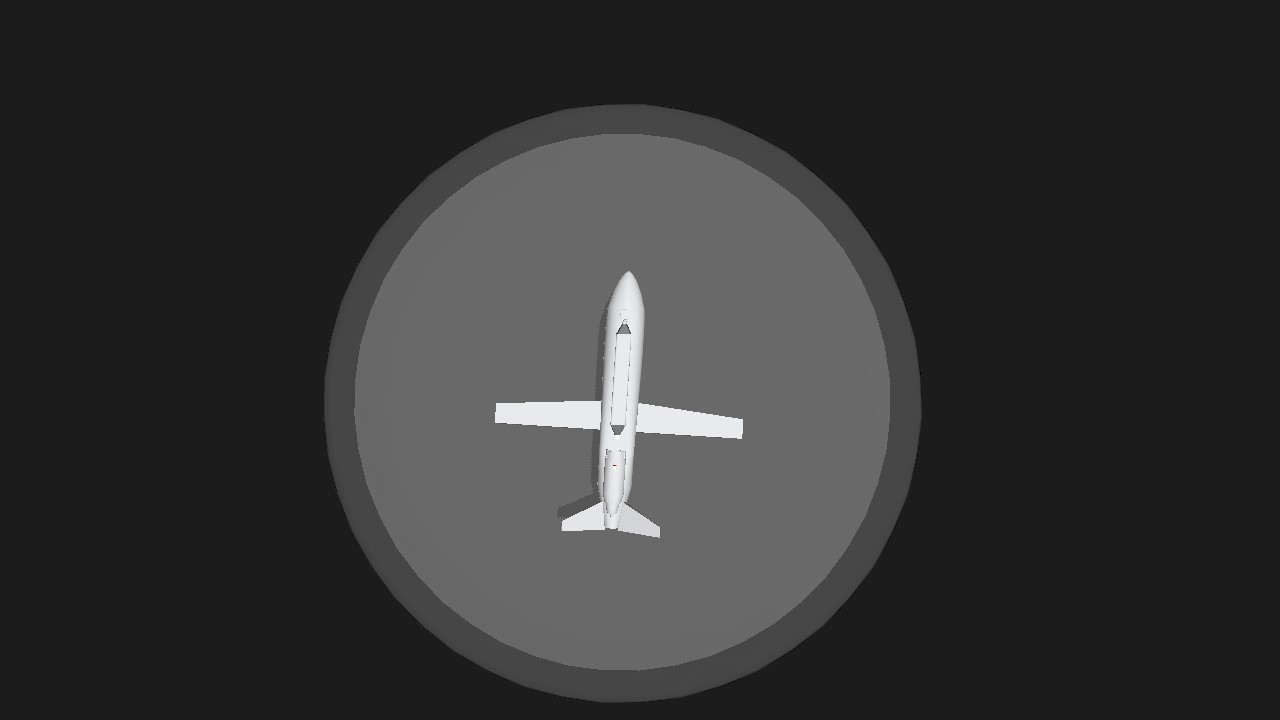

According to the published materials, “Bars” is Ukrainian created according to the classical scheme. The missile is a medium-wing with a wingspan of about 2 meters and has a biplane tail. A small jet engine is placed above the fuselage, which simplifies the design and makes it possible to change engine suppliers without redesigning the hull.The missile’s fuselage is made of composite materials and consists of a minimum number of parts. This approach, as journalists noted, was chosen to speed up production.At the same time, the manufacturer and developer of the Bars missile are not officially disclosed. It is only known that it is a private, not a state-owned company.There are also no detailed technical specifications of the product. According to available information, the missile’s range is estimated to be within 700–800 kilometers, and the mass of the warhead is probably tens of kilograms or about 100 kilograms

General Characteristics

  • Created On Android
  • Wingspan 20.7ft (6.3m)
  • Length 21.4ft (6.5m)
  • Height 4.3ft (1.3m)
  • Empty Weight 2,210lbs (1,002kg)
  • Loaded Weight 4,955lbs (2,247kg)

Performance

  • Power/Weight Ratio 2.04
  • Wing Loading 101.1lbs/ft2 (493.4kg/m2)
  • Wing Area 49.0ft2 (4.6m2)
  • Drag Points 587

Parts

  • Number of Parts 18
  • Control Surfaces 4
  • Performance Cost 84
