INTRODUCTION:

The AIDC F-CK-1 Ching-Kuo, commonly known as the Indigenous Defense Fighter (IDF), is a light multirole combat aircraft named after Chiang Ching-kuo, the late President of the Republic of China. The aircraft made its first flight in 1989. It was entered service with Republic of China Air Force (Taiwan) in 1992. All 130 production aircraft were manufactured by 1999.

I built this plane is because no one built a precise one on site before, I also want to make it as close to real as possible, or as close as DCS feeling.
Model V is fictional model since I dont have enough data from the real cockpit so I won't call it as any real model.
Try not to fly too slow, she doesn't like slow just as same as F-16.
AI cannot fly this plane.

HISTORY:

Taiwan initiated the IDF program when the United States refused to sell them F-20 Tigershark and F-16 Fighting Falcon jet fighters following diplomatic pressure from China. Taiwan therefore decided to develop an advanced indigenous jet fighter. The Aerospace Industrial Development Corporation (AIDC), based in Taichung, Taiwan, designed and built the IDF jet fighter.

WIKI:

HERE

FEATURES:

  • Semi-realistic cockpit and functionality
  • Fully Fly-by-wire, can turn off SAS then it will switch back to direct input
  • No autopilot needed, the plane fly straight itself just like real one
  • Realistic thrust power, weight, fuel, turn rate, speed, size, ammunition
  • No need to control flaps, they are scheduled with landing gear as same as
    F-16

ACTIVATION GROUP:

AG1 - Tail Hook
AG2 - Mirror
AG3 - Anti-collision lights
AG4 - Navigation lights (Wingtips)
AG5 - Navigation lights (Fuselage)
AG6 - Formation lights
AG7 - Canopy
AG8 - SAS Pitch
VTOL - None
TRIM - Trim

COCKPIT FEATURE DEMOSTRATIONS:

cockpit
[Engine Stop & Start]
[External lights]
[Internal lights]
[MFD]
[Select and Jettison]
[Dogfight]
[Carrier Landing]

INSTRUCTIONS:

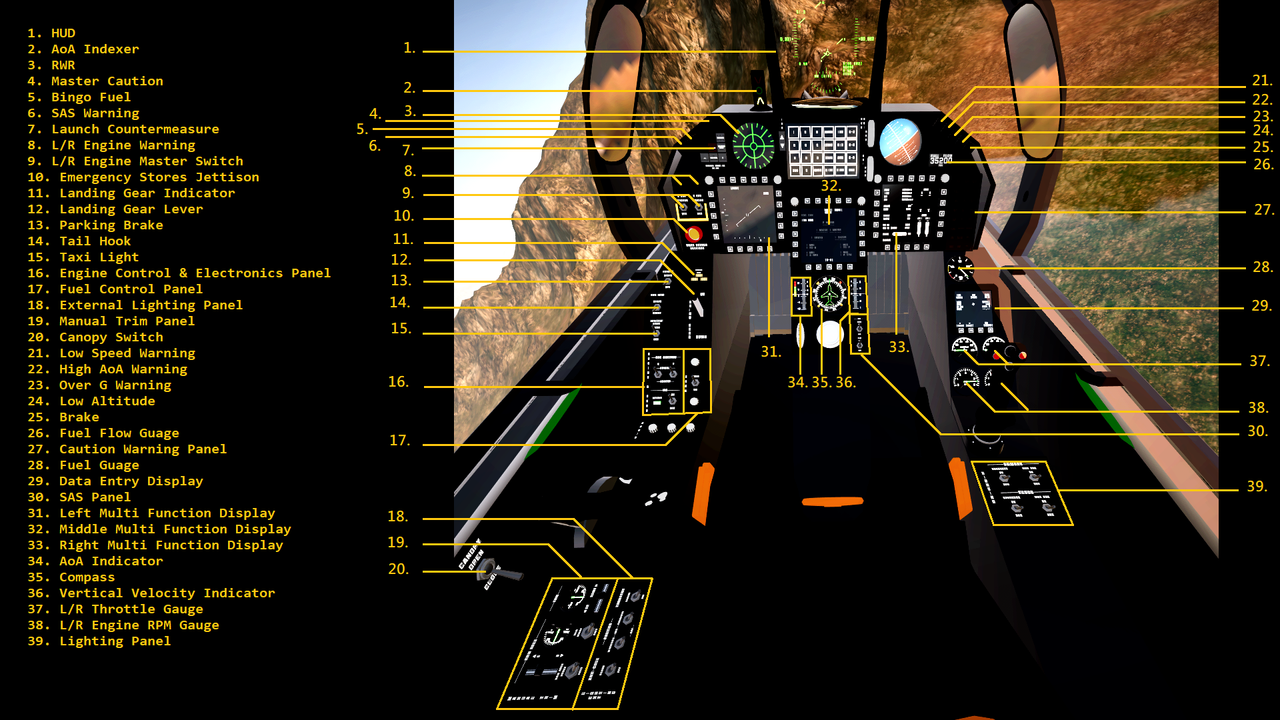

All functional panel and parts

cockpit

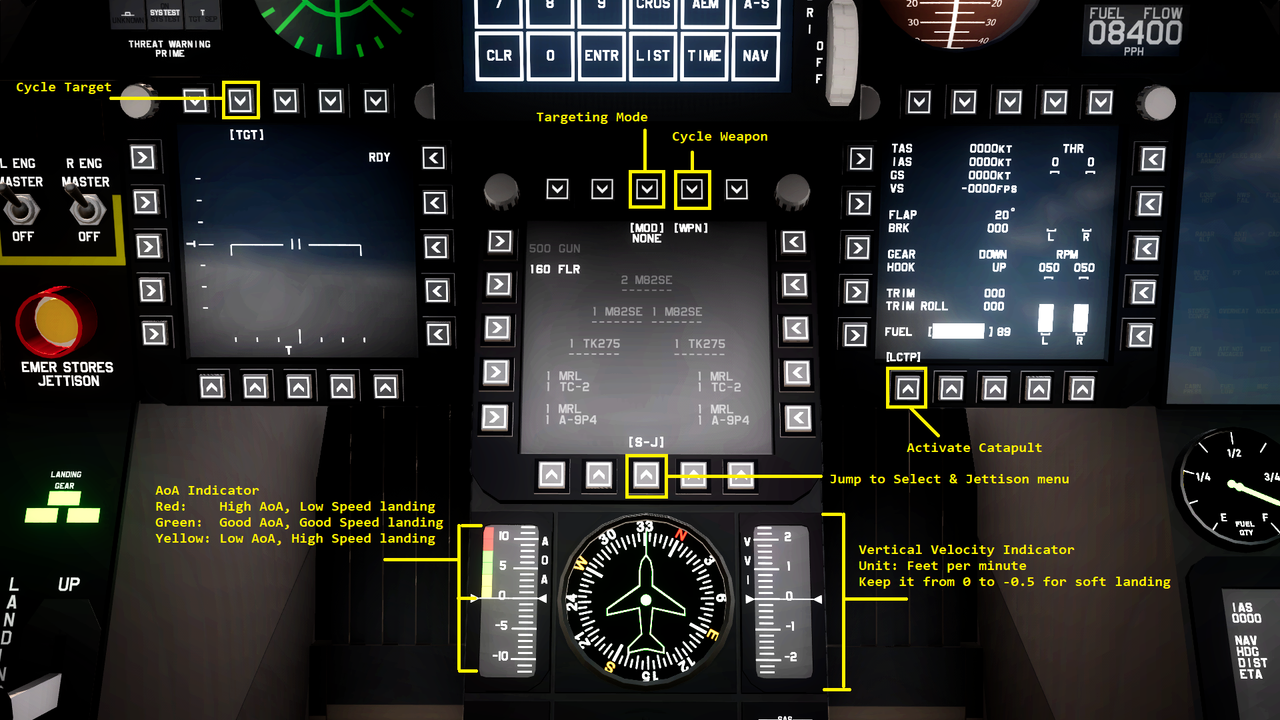

MFD/AOAI/VVI instructions

cockpit

Select & Jettison instructions

cockpit

HMCS instructions

cockpit

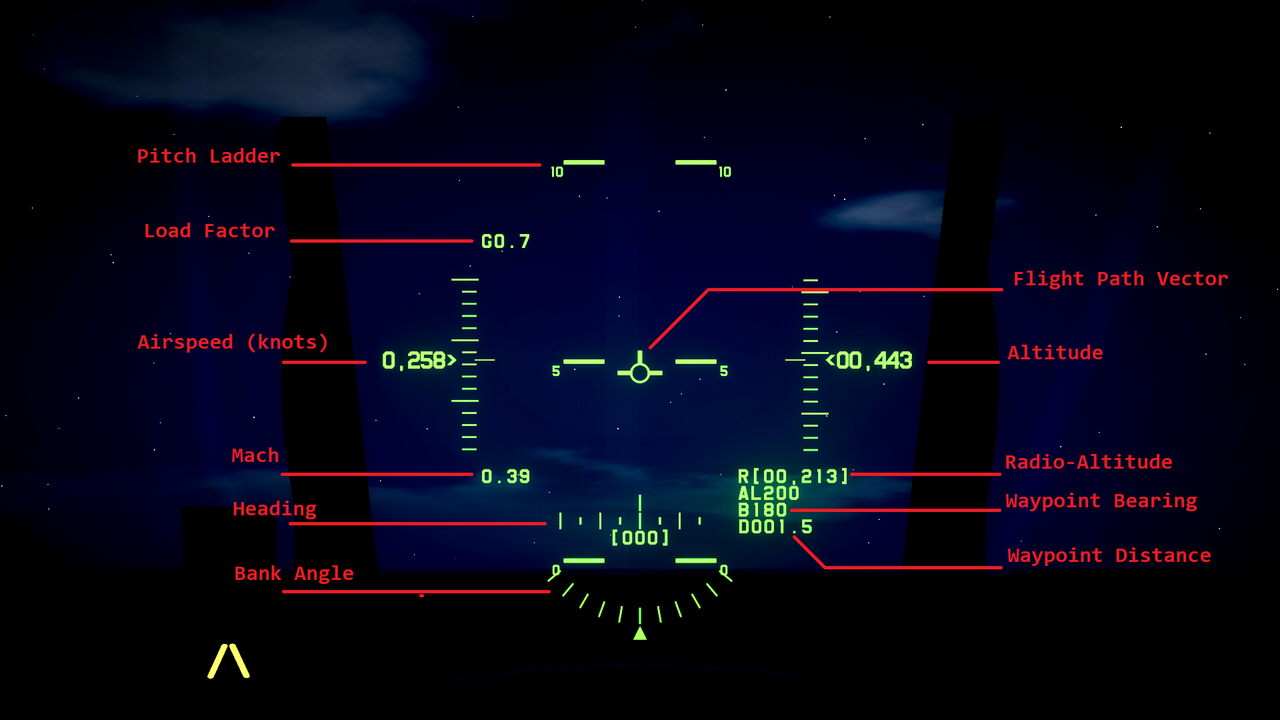

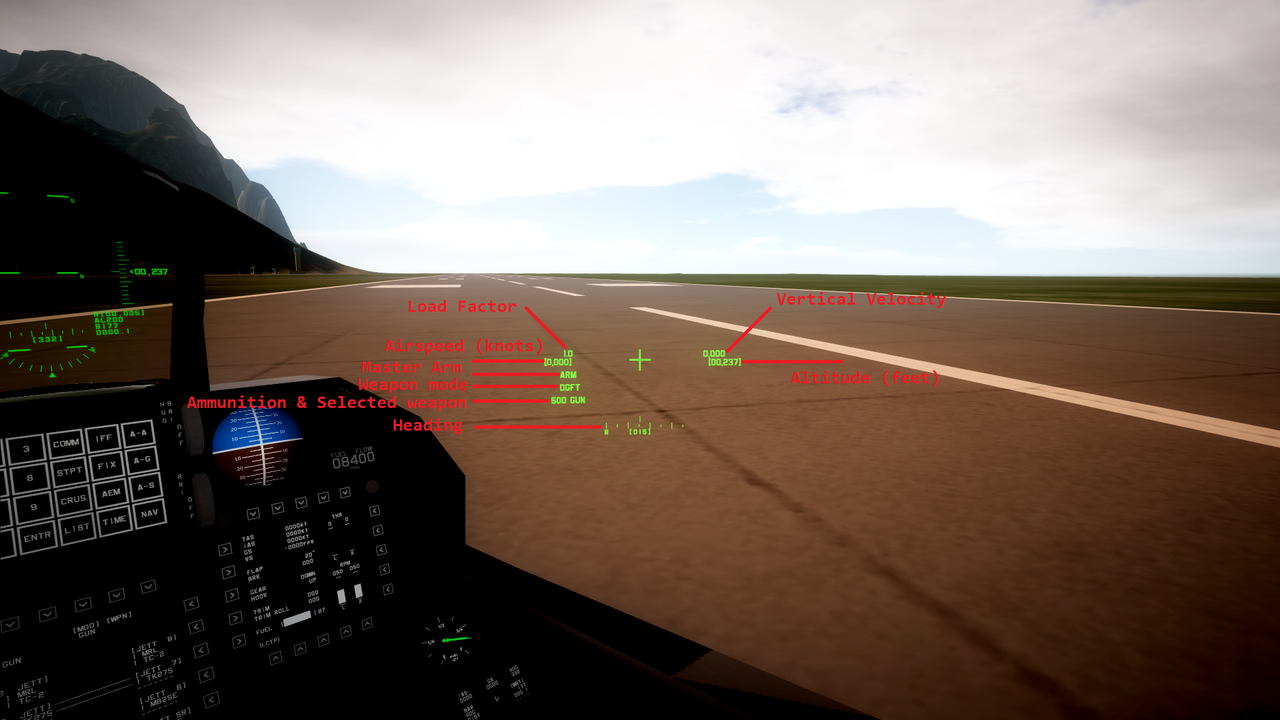

HUD instructions

cockpit

DED instructions

cockpit

Before start checklist

Parking Brake.......On
IPS.................On
WHEN STATUS LIGHT STEADY
Fuel Control........Normal

T.O. checklist

Parking Brake.......Off
L/R Engine Master...On
SAS Pitch...........On
SAS Yaw.............On
Trim................UP 100%
Trim Roll...........0%
Taxi Light..........Auto
Hook................Up
Fuel................Check

Landing checklist

Parking Brake.......Off
SAS Pitch...........On
SAS Yaw.............On
Trim................0%
Trim Roll...........0%
Taxi Light..........Auto
Hook................Up (for Carrier landing: Down)
Landing Gear........Down

LOADOUT:

M61A2 x 1 (500 rounds)

The M61 Vulcan is a hydraulically, electrically or pneumatically driven, six-barrel, air-cooled, electrically fired Gatling-style rotary cannon which fires 20 mm (0.787 in) rounds at an extremely high rate (typically 6,000 rounds per minute)
M61A2

AIM-9P4 x 2 (Station 1/9)

The AIM-9 Sidewinder is a short-range air-to-air missile, P4 is the expoted model derivated from L model
AIM-9A4

TC-2 x 2 (Station 2/8)

The Sky Sword II (Chinese: Tien Chien II), or TC-2, is a medium-range, radar guided air-to-air missile, similar role as AIM-120.
TC-2

TK-275 x 2 (Station 3/7)

Fuel Tank with 275 gal, provide around 40% extra fuel in total.
TK-275

MK82-SE x 4 (Station 4/5F/5R/6)

The Mark 82 (Mk 82) is an unguided, low-drag general-purpose bomb, part of the United States Mark 80 series, SE is the exported model
TK-275

GALLERY:










Spotlights

General Characteristics

  • Successors 5 airplane(s) +35 bonus
  • Created On Windows
  • Wingspan 30.7ft (9.3m)
  • Length 46.9ft (14.3m)
  • Height 15.4ft (4.7m)
  • Empty Weight N/A
  • Loaded Weight 25,873lbs (11,735kg)

Performance

  • Power/Weight Ratio 0.729
  • Wing Loading 50.2lbs/ft2 (244.9kg/m2)
  • Wing Area 515.8ft2 (47.9m2)
  • Drag Points 380

Parts

  • Number of Parts 801
  • Control Surfaces 0
  • Performance Cost 7,032
